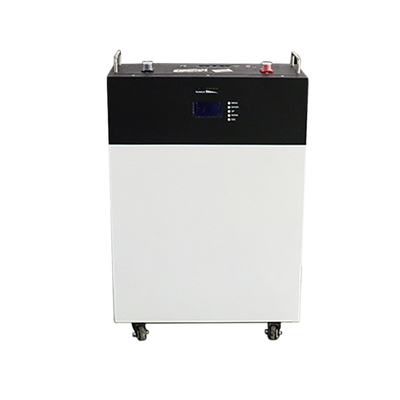

300Ah 48V 100Ah Household Energy Storage Battery Lithium Ion Solar Battery IP54

Price: $570.00/pieces 1-49 pieces
Supply Capacity: 100000 Piece/Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YIMA
Model Number
YM-WALL 5
Battery Type:
Lithium Ion
Output Power Range:
5~10 KWh
System Type:
Wall-mounted
Type:
Split
Communication Port:
RS232, RS485
Protection Class:
IP54
Grid Connection:
Hybrid Grid
Product Name:
Home Wall-Mounted Energy Storage Battery
Battery Type:
LiFePO4
Factory Voltage:
51V-53V(40-60%)
Application:
Solar Energy Storage System
Voltage At End Of Discharge:
40-44V
OEM/ODM:
YES
Charging Voltage:
56-58V
Limiting Current:
20A
Weight:
107Kg
Capacity:
10KWh
Port:
Shenzhen
Price:
$570.00/pieces 1-49 pieces
Supply Ability:
100000 Piece/Pieces per Month
Highlight:

300Ah Household Energy Storage Battery

,

Lithium Ion Solar Battery IP54

,

Household Energy Storage Battery IP54

Product Description
Storage backup battery 25.6v 48v 51.2v power wall 300 ah with wifi 48v 100ah lithium ion battery
Product Description
300Ah 48V 100Ah Household Energy Storage Battery Lithium Ion Solar Battery IP54 0
Combination method
16S4P
Rated Capacity
Typical:200Ah, Minimum:196Ah
Internal Impedance
≤60mΩ
Standard Charge
Constant Current 40A, Constant Voltage 56-58V, 0.02CA cut-off
Limiting current
20A
Standard Discharge
Constant current 40A, end voltage 40-44V
Maximum Continuous Discharge Current
100A(T≥10ºC)
Operation Temperature
Range
Charge: 0~45℃, Discharge: -20~55℃
300Ah 48V 100Ah Household Energy Storage Battery Lithium Ion Solar Battery IP54 1
300Ah 48V 100Ah Household Energy Storage Battery Lithium Ion Solar Battery IP54 2
300Ah 48V 100Ah Household Energy Storage Battery Lithium Ion Solar Battery IP54 3
300Ah 48V 100Ah Household Energy Storage Battery Lithium Ion Solar Battery IP54 4
300Ah 48V 100Ah Household Energy Storage Battery Lithium Ion Solar Battery IP54 5
Project Cases
300Ah 48V 100Ah Household Energy Storage Battery Lithium Ion Solar Battery IP54 6
300Ah 48V 100Ah Household Energy Storage Battery Lithium Ion Solar Battery IP54 7
300Ah 48V 100Ah Household Energy Storage Battery Lithium Ion Solar Battery IP54 8

Battery Management System Specification

BMS function introduction The BMS have all functions which are : overcharge detection function over discharge detection function over current detection function short detection function Temperature detection function balance function communicate function Alarm function Total capacity function Storage history function
300Ah 48V 100Ah Household Energy Storage Battery Lithium Ion Solar Battery IP54 9
Home Storage Inverter Testing Area
300Ah 48V 100Ah Household Energy Storage Battery Lithium Ion Solar Battery IP54 10
