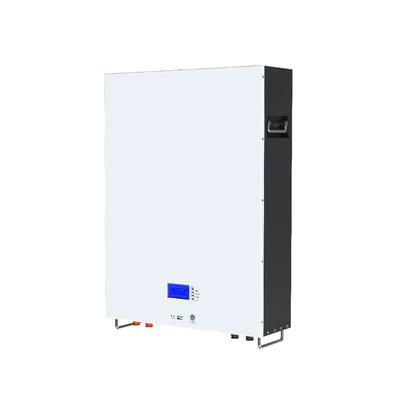

Smart BMS Off Grid Hybrid Lithium Ion House Battery 100ah 200ah Customized

MOQ: 2 pieces
Price: $625.00/pieces 2-4 pieces
Standard Packaging: The wall mounted battery is suitable for packaging in cardboard boxes that meet the transportation specifications, or it can be equipped with wooden boxes.
Supply Capacity: 100000 Piece/Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin
Guangdong, China
Brand Name
YIMA
Model Number
YM-WALL-51.2V05
Battery Type:
Lithium Ion, LiFePO4
Product Name:
Home Wall-Mounted Energy Storage Battery
Battery Type:
LiFePO4
Factory Voltage:
51V-53V(40-60%)
Application:
Solar Energy Storage System
Voltage At End Of Discharge:
40-44V
OEM/ODM:
YES
Charging Voltage:
56-58V
Limiting Current:
20A
Weight:
107Kg
Capacity:
2.5Kwh/5Kwh/10KWh/Customized
Port:
Shenzhen
Minimum Order Quantity:
2 pieces
Price:
$625.00/pieces 2-4 pieces
Packaging Details:
The wall mounted battery is suitable for packaging in cardboard boxes that meet the transportation specifications, or it can be equipped with wooden boxes.
Supply Ability:
100000 Piece/Pieces per Month
Highlight:

Smart BMS lithium ion house battery

,

lithium ion house battery 100ah

,

Customized li ion home battery

Product Description
Product Description
Model
Lithium Battery Module
Powerwall 48V 100AH/150AH/200AH

Voltage&Capacity
48V 50AH
48V 100Ah
48V 150Ah
Display
LCD Optional


BMS
Built -in BMS


Cycles Life
6000


Warranty
5 Years


Communication
CAN/RS 485


Operation Temperature
Discharge: -20℃-55℃(pack internal temperature )


Charge Voltage
58.4V


Charge Mode
0.33C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV)


Battery Pack Size
Customized
500*160*680mm
485*190*650mm
Discharge Temperature
-20 ℃ to 55℃ (-4F to 131F) @60±25% Relative Humidity


Battery Pack Weight
30KGS
50KGS
75KGS
Battery Rack Weight
/
5KGS

Smart BMS Off Grid Hybrid Lithium Ion House Battery 100ah 200ah Customized 0
Smart BMS Off Grid Hybrid Lithium Ion House Battery 100ah 200ah Customized 1
Smart BMS Off Grid Hybrid Lithium Ion House Battery 100ah 200ah Customized 2

Battery Management System Specification

BMS function introduction The BMS have all functions which are : Overcharge detection function Over discharge detection function Over current detection function Short detection function Temperature detection function Balance function Communicate function Alarm function Total capacity function Storage history function
Smart BMS Off Grid Hybrid Lithium Ion House Battery 100ah 200ah Customized 3
Smart BMS Off Grid Hybrid Lithium Ion House Battery 100ah 200ah Customized 4
Smart BMS Off Grid Hybrid Lithium Ion House Battery 100ah 200ah Customized 5
Smart BMS Off Grid Hybrid Lithium Ion House Battery 100ah 200ah Customized 6
Smart BMS Off Grid Hybrid Lithium Ion House Battery 100ah 200ah Customized 7
Smart BMS Off Grid Hybrid Lithium Ion House Battery 100ah 200ah Customized 8

Product packaging
Smart BMS Off Grid Hybrid Lithium Ion House Battery 100ah 200ah Customized 9
Company Profile
Smart BMS Off Grid Hybrid Lithium Ion House Battery 100ah 200ah Customized 10
Shenzhen Yima Power Supply Co., Ltd (hereinafter referred to as "Yima"was established in 2017. Yima is mainly committed to the research and development, producing and sales of lithium-ion 18650 series cells and battery modules. Our products are widely used in four major sectors: Two-wheeler market (E-Bike, electric motorcycle/scooter, golf cart), Robot market (AGV, AI, early childhood education robot), Energy storage market (solar lights, industrial energy storage, household energy storage), Power tools market (garden tools, vacuum cleaners, sweepers).

Yima has passed the ISO9001 quality management system and environmental management system in 2021, and all products have passed CE, UL, ROSH, UN38.3, MSDS and other certifications. We currently has two brands, Yima. Yima strictly controls every link of product development, raw material procurement, incoming material inspection, manufacturing control, finished product testing, after-sales service, product quality etc. Quality awareness has penetrated into the hearts of every employee.Yima insists on technological innovation, create value for customers, and produce energy for the world.
Tags:

Smart BMS lithium ion house battery,

lithium ion house battery 100ah,

Customized li ion home battery
