Introduction
Charge discharge test equipment is mainly used for lithium battery charge discharge cycle test.
Test Items
Battery charging protection voltage, discharge protection voltage, capacity, etc. The device has four test steps: charging, discharging, shelving and cycling. By editing the corresponding steps, the battery can be tested according to the set process.

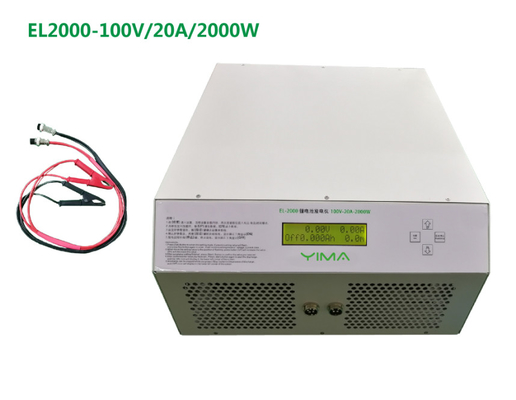

EL2000 Functions
EL2000 electronic load is suitable for aging and discharging batteries of various voltages. It can set the discharge current, set and record the discharge cut-off voltage, discharge capacity, discharge time and other parameters, and check whether the battery pack is qualified according to the test data.
Technical Parameter
| parameter | figure | units | descr | |||||||||||||||
| AC power input range | 200~240 | V | AC power | |||||||||||||||
| Discharge input voltage range | 5~ 100 | V | DC | |||||||||||||||
| Discharge current range | 0~20. | A | ||||||||||||||||
| Maximum discharge power | 2000 | W | ||||||||||||||||
| Voltage display accuracy | 0.01 | V | ||||||||||||||||
| Current display accuracy | 0.01 | A | ||||||||||||||||
| Capacity display accuracy | 0.01 | Ah | ||||||||||||||||
| Time display accuracy | 0.1 | M | min | |||||||||||||||
| Fan starting condition | Bringing onto load | |||||||||||||||||
| size | 46*40*20CM | |||||||||||||||||
| weight | 20KG | |||||||||||||||||
On the left: the "Set/Shift" key; on the right: the "Start/Confirm" key; above: the "Increase" key; below:
"Decrease" key.
