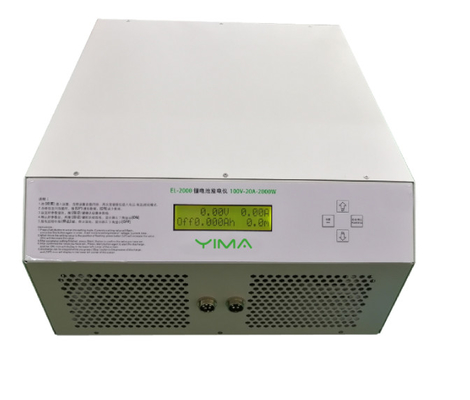

EL2000 Functions
EL2000 electronic load is suitable for aging and discharging batteries of various voltages. It can set the discharge current, set and record the discharge cut-off voltage, discharge capacity, discharge time and other parameters, and check whether the battery pack is qualified according to the test data.
Technical Parameter
| parameter | figure | units | descr | |||||||||||||||
| AC power input range | 200~240 | V | AC power | |||||||||||||||
| Discharge input voltage range | 5~ 100 | V | DC | |||||||||||||||
| Discharge current range | 0~20. | A | ||||||||||||||||
| Maximum discharge power | 2000 | W | ||||||||||||||||
| Voltage display accuracy | 0.01 | V | ||||||||||||||||
| Current display accuracy | 0.01 | A | ||||||||||||||||
| Capacity display accuracy | 0.01 | Ah | ||||||||||||||||
| Time display accuracy | 0.1 | M | min | |||||||||||||||
| Fan starting condition | Bringing onto load | |||||||||||||||||
| size | 46*40*20CM | |||||||||||||||||
| weight | 20KG | |||||||||||||||||
On the left: the "Set/Shift" key; on the right: the "Start/Confirm" key; above: the "Increase" key; below:
"Decrease" key.
