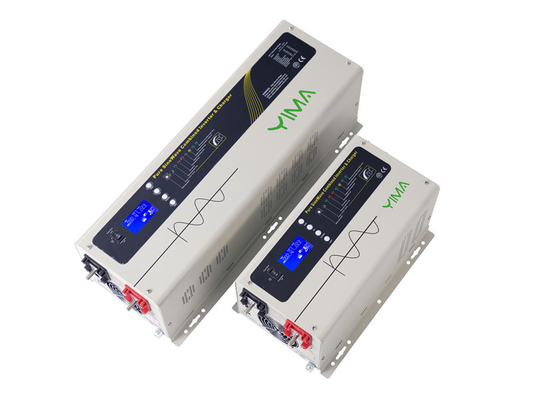

YM-HC 1000W-6000W Pure Sine Wave Inverter Residential Commercial Use

MOQ: 2 pieces
Price: Negotiable
Payment Method: L/C, T/T
Supply Capacity: 100000 Piece/Pieces per Month
Detail Information
Product Description
Detail Information
Model Number
YM-HC
Product Name:
Off Grid Inverter
Rated Capacity:
1Kw-6KW
Series:
Pure Sine Wave Series
Warranty:
5 Years
OEM/ODM:
Available
Application:
Renewable Energy Systems, Solar Photovoltaic Systems
Minimum Order Quantity:
2 pieces
Price:
Negotiable
Payment Terms:
L/C, T/T
Supply Ability:
100000 Piece/Pieces per Month
Highlight:

6000W Pure Sine Wave Inverter

,

1000W Pure Sine Wave Inverter

Product Description
PRODUCT DESCRIPTION:
HC series pure sine wave inverter is a versatile and high-performance power solution that offers reliable and clean power for various applications. Its high conversion rate of 88% ensures efficient power delivery, while its advanced features such as power factor correction and multi-stage charging make it a durable and efficient inverter for both residential and commercial use.





PRODUCT FEATURES:
1. Contains four functions of mains bypass, mains charging, inverter,UPS, fully automatic switching
2. The efficiency is 3~5% higher than the ordinary power frequency series, and the self-consumption is reduced by 30~50%
3. DIP switch selection: battery undervoltage point, input AC range, energysaving mode, priority mode
4. Remote communication interface RJ11/RJ45/RS232/485 remote control panel (optional)
5. Support PC software monitoring, support WIFI 4G module expansion to realize app cloud monitoring (optional)
6. Pure sine wave output, input and output completely isolated design
7. Contains AC four-stage charging mode, and the charging current is automatically adjusted
8. It can be matched with commercial power, diesel engine power generationand other mixed power supply
9. Can withstand 3 times the rated power start, excellent load capacity
10. LED display working status, LCD remote display operating parameters
11. Undervoltage/overvoltage/short circuit/overload/over temperature protection
12. Pure sine wave series inverters are suitable for renewable energy systems, utilities, RVs,Marine and emergency applications.

YM-HC 1000W-6000W Pure Sine Wave Inverter Residential Commercial Use 0YM-HC 1000W-6000W Pure Sine Wave Inverter Residential Commercial Use 1

Parameter
MODEL(HC) 1kw 1.5kw 2kw 3kw 4kw 5KW 6KW
Continuous Output Power (W) 1000W 1500W 2000W 3000W 4000W 5000W 6000W
Rated input voltage 12VDC/24VDC/48VDC 12VDC/24VDC/48VDC 24VDC/48VDC
Mains mode specifications:
Input voltage waveform Sine wave (mains or generator)
Rated input voltage 100V/ 110V/ 120V/220V/230V/240Vac

Low voltage

shutdown point

 92/ 184Vac±4%
Low pressure recovery point 97/ 194Vac ±4%

High voltage

shutdown point

 127/253Vac±4%
High pressure recovery point 121/243Vac±4%

Maximum

AC input voltage

 135/270V rms
Rated input frequency 50Hz/ 60Hz (automatic detection)
Low voltage recovery point frequency 40.5+0.3Hz ;
Low voltage cut-off point frequency 40+0.3Hz;
High voltage recovery point frequency 69.5+0.3Hz;
High voltage cut-off point frequency 70+0.3Hz ;
Output voltage waveform Consistent with the input voltage waveform
Overload protection Circuit breaker start
Short circuit protection Circuit breaker start
Power Efficiency >95%
Conversion current 30A
Conversion time (Ac to Dc) 10ms
Bypass switching current Yes
Bypass maximum load current 30A
Output voltage waveform Sine wave
Power factor 0~1.0
Rated output voltage (V) 120/230Vac
Rated output frequency (Hz) 60/50Hz ± 0.3Hz
Automatic tracking main frequency (Hz) Yes (from the first connection)
Output voltage range ±2% rms
efficient >80%
Overload protection (SMPS load)

(110%<load<125%) ±10%: disconnect the output voltage after 15 minutes

(125%<load <150%) ±10%: disconnect the output voltage after 10 seconds

Load >150% ±10%: Disconnect the output voltage after 20 seconds
Peak capacity( 10s) 3000VA 4500VA 6000VA 9000VA 1200VA 15000VA 18000VA
start the motor 1HP 1.5HP 2HP 3HP 4HP 5HP 6HP
Short circuit protection Current limit (power off after 10s)
Circuit breaker size 15A 20A 30A 40A
Rated DC input voltage 12V / 24V/48V

Minimum DC

terminal voltage

 10V/20V/40V
Undervoltage warning 10.5Vdc ± 0.3Vdc (12V power supply)
DC input voltage is too low, automatic power off 10.0Vdc ± 0.3Vdc(12V power supply)
Input overvoltagewarning and power failure 16Vdc ± 0.3Vdc (12Vpower supply)
Input overvoltage recovery 15.5Vdc ± 0.3Vdc(12V power supply)
Power saving load ≦2W
Inverter dimensions 360*185* 180mm 420*185* 180mm 597* 195* 190mm
(Length*width*height)

Packing size

(length*width*height)

 520*315*305 580*315*305mm 760*325*310mm
Inverter weight 13.5KG 14KG 17KG 21KG 27KG 29.5KG 30.5KG
Packing operating weight 15.5KG 15.5KG 19KG 23.5KG 29.5KG 31.5KG 32.5KG
Standard warranty 2 year



If the product model specification changes without notice
