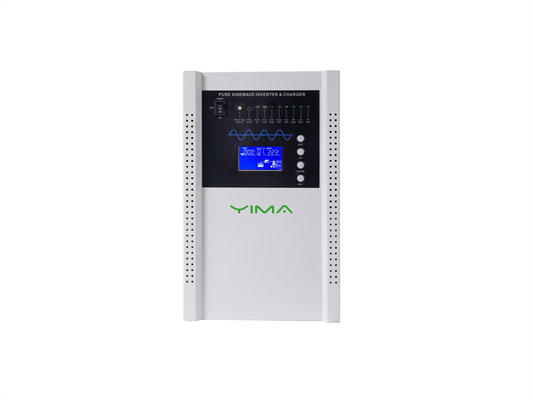

Intelligent Solar Off Grid Inverter 10.0KW 12.0KW Pure Sine Wave Inverter

MOQ: 2 pieces
Price: Negotiable
Payment Method: L/C, T/T
Supply Capacity: 100000 Piece/Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Yima
Certification
ISO14001 ISO9001
Model Number
YM-HV
Product Name:
Off Grid Inverter
Rated Capacity:
1Kw-12Kw
Series:
Pure Sine Wave Series
Warranty:
5 Years
OEM/ODM:
Available
Application:
Renewable Energy Systems, Solar Photovoltaic Systems
Minimum Order Quantity:
2 pieces
Price:
Negotiable
Payment Terms:
L/C, T/T
Supply Ability:
100000 Piece/Pieces per Month
Highlight:

Intelligent Solar Off Grid Inverter

,

Solar Off Grid Inverter 10.0KW

,

12.0KW Pure Sine Wave Inverter

Product Description

PRODUCT DESCRIPTION:

HET HV solar off-grid vertical inverter series products areBuilt-in solar MPPT/PWM controller (optional), and complementary with mains Inverter control all-in-one machine, users only need external solar modules and batteries,It can form an off-grid power generation system;The user can set the sleep mode according to the actual situation, The solar energy priority mode is a multi-functional and intelligent inverter control all-in-one machine.





PRODUCT FEATURES:

1. Pure sine output is suitable for various loads. It can be used with mixed power supply such as mains/diesel generators Automatic switching of

2. 5 functions: mains bypass, mains charging, solar charging, inverter, UPS

3. Built-in MPPT/solar charge controller (controller power 40/60A/80A/120A optional)

4. Contains relay switching and AC/DC circuit breaker, with multiple protections such as undervoltage /overvoltage/short circuit/overload/over temperature

5. DIP switch selection: battery undervoltage point, input AC range, energy saving mode, output frequency, priority mode

6. The efficiency is 3~5% higher than the ordinary power frequency series, and the self-consumption is reduced by 30%~50%

7. Professional off-grid solar system solutions (optional)

8. Remote control RJ11/RJ45 and RS232/485 interface remote control panel (optional)

9. Pure sine wave series inverters are suitable for renewable energy systems, solar photovoltaic systems, vehicles, ships,Marine and emergency applications.

Intelligent Solar Off Grid Inverter 10.0KW 12.0KW Pure Sine Wave Inverter 0

Intelligent Solar Off Grid Inverter 10.0KW 12.0KW Pure Sine Wave Inverter 1

HV-pv Series parameter table



Electrical Specifications
  Model HV-PV 1.0KW 2.0KW 3.0KW 4.0KW 5.0KW 6.0KW 8.0KW 10.0KW 12.0KW

















Inverter output

 rated power 1.0KW 2.0KW 3.0KW 4.0KW 5.0KW 6.0KW 8.0KW 10.0KW 12.0KW
Peak power (2 seconds) 3.0KW 6.0KW 9.0KW 12.0KW 15.0KW 18.0KW 24.0KW 30.0KW 36.0KW
Output voltage waveform Pure sine wave (mains or generator)
Rated efficiency >88%(Peak)
Online mode efficiency >95%
Power factor 0.9-1.0
Rated output voltage 100-110-120Vac / 220-230-240Vac
Output frequency 50Hz ± 0.3Hz/60Hz ± 0.3Hz
Short circuit Yes, protection after 1 second short circuit
  protection
Typical switching time 10ms (maximum)
Total harmonic distortion < 10%















DC

input

 Rated input voltage 12.0Vdc / 24.0Vdc / 48.0Vdc 24.0Vdc / 48.0Vdc 48.0Vdc/60.0Vdc/72.0Vdc
Minimum starting voltage 10.0Vdc / 10.5Vdc for 12Vdc Mode













*2 for 24Vdc,*4 for 48Vdc*5 60VdcVdc *6 72Vdc
Low battery voltage alarm 10.5Vdc / 11.0Vdc for 12Vdc Mode

Low voltage cut

out

 10.0Vdc / 10.5Vdc for 12Vdc Mode
High voltage cutting 16.0Vdc for 12Vdc Mode
Low voltage recovery 15.5Vdc for 12Vdc Mode















Charge controll er

 The output voltage Depends on battery type

Charging circuit breaker

specifications



15A



20A



30A



40A



40A



40A



50A



80A



80A

Maximum

charging current

 See detailed table
Starting voltage 10.5-15.7Vdc for 12Vdc Mode





*2 for 24Vdc, *4 for 48Vdc;*6 72Vdc

Overcharge

protection

shutdown point

 more than the 15.8Vdc for 12Vdc Mode















protect

 Rated input voltage 100-110-120Vac / 220-230-240Vac
Maximum input voltage 150VAC For 120Vac LV Mode ；300VAC For 230Vac HV Mode；
Rated input frequency 50Hz or 60Hz
Low frequency cut out 47±0.3Hz for 50Hz, 57±0.3Hz for 60Hz
High frequency cut out 55±0.3Hz for 50Hz, 65±0.3Hz for 60Hz
Overload yes
  protection

Output short

circuit protection

 yes
Maximum bypass current 30Amp 40Amp 80Amp















Solar

Control ler

parame ter

 Solar system voltage MPPT12V/24V/36V/48V automatic recognition

Open circuit

voltage of

photovoltaic panel

 18～150Vdc@ 12V 35～150Vdc@24V 60～150Vdc@48V
Rated charging current 30A-120A (optional)
Charging efficiency 97.6%
Rechargeable battery type Valve-regulated lead-acid battery Gel battery Lithium battery
charging method Four-stage charging: constant current charge, constant voltage charge, float charge, equal charge
safety protection Solar panel short circuit protection, overcharge protection, over discharge protection, overload protection

















Mecha nical

parame

ters

 Install Wall mount

Inverter size

(length * width * height)

 380*215* 360mm



490*215*410mm



490*215*410mm



480*300*715mm
Inverter shell size (length * width * height)



—



—



—



550*320*820mm

Net weight of

inverter with solar rear KG



—



—



—



—



—



—



63



65.5



66.5
Package includes solar rear unit net weight KG



—



—



—



—



—



—



71.5



74



75
show Status LEDs / Status LEDs+LCD
Standard warranty 2 year
