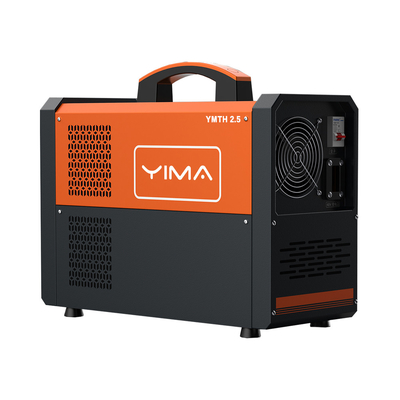

Safe And Reliable 2500WH Rechargeable Welding Machine YMTH2.5

Safe And Reliable 2500WH Rechargeable Welding Machine YMTH2.5

Detail Information
Place of Origin
Guangdong, China
Brand Name
YIMA
Model Number
YMTH2.5
Name:
Rechargeable Welding Machine
Energy Storage Capacity:
2500WH
Battery Mounting Method:
Internal Battery
Type Of Battery:
NCM
Inverter Power:
4000W
Welding Current:
25-180A
Highlight:

2500WH Rechargeable Welding Machine

,

Safe Rechargeable Welding Machine

,

2500WH rechargeable welding tool

Product Description

Performance introduction

.Built-in automotive grade power cell, durable, energy saving and environmental protection

.Fan intelligent start and stop function, energy saving

.Built-in battery undervoltage, overcharge, overcurrent, overheat protection, safe and reliable

.One key setting of thrust and thermal arc adjustment, easy to use

.Auxiliary output 21V DC, can be used for DC 21V power tools

.The maximum output current of this product is 200A, and the diameter of 2.5-4.0 electrode can be used



Endurance parameter table

2.5mm electrode,welding current 80A,Number of electrodes,about 85
3.2mm electrode ,Welding current 120A,Number of electrodes,about 40
4.0mm electrode,welding current 180A,number of electrodes,about 20



Electrical parameter

Energy storage capacity 2500WH
Battery mounting method internal battery
Type of battery NCM
Inverter power 4000W
welding current 25-180A
charge current 15A
BMS function Overcurrent, overload, short circuit
Number of battery cycles 2000
operating temperature -20°C--40°C



Safe And Reliable 2500WH Rechargeable Welding Machine YMTH2.5 0Safe And Reliable 2500WH Rechargeable Welding Machine YMTH2.5 1
