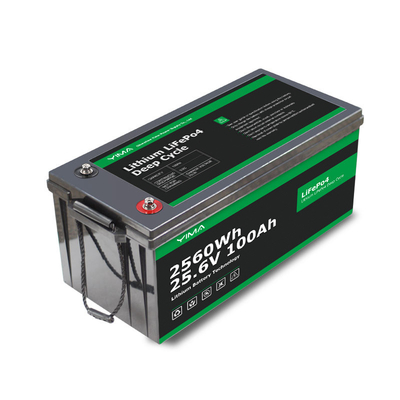

Lead Acid Replacement Batteries have several key features, including:
Lightweight: Lead Acid Replacement Batteries are typically much lighter than traditional lead-acid batteries, making them easier to handle and transport.
Maintenance-free: Unlike traditional lead-acid batteries, lead acid replacement batteries are maintenance-free and do not require regular watering or maintenance.
High energy density: Lead Acid Replacement Batteries have a high energy density, providing more power in a smaller package compared to traditional lead-acid batteries.
Fast charging: Lead Acid Replacement Batteries can be charged quickly, allowing for shorter charging times and increased productivity.
Environmentally friendly: Lead Acid Replacement Batteries are typically more environmentally friendly than traditional lead-acid batteries, as they are often made from recyclable materials and do not contain harmful chemicals like lead.
Long lifespan: Lead Acid Replacement Batteries have a longer lifespan than traditional lead-acid batteries, reducing the need for frequent replacements and saving money in the long run.
| Model | YM-1207LFP | YM-1220LFP | YM-1250LFP | YM-12100LFP | YM-12100LFP | YM-12300LFP |
| Nominal Voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V |
| Nominal Capacity @25℃ | 7AH | 20AH | 50AH | 100AH | 200AH | 300AH |
| Battery Type | 32700/26650 | 32700/26650 | LFP 50AH | LFP 100AH | LFP 200AH | LFP 300AH |
| Nominal Energy | 89.6WH | 256WH | 640WH | 1280WH | 2560WH | 3840WH |
| Max. Continous Charge Current | 7A | 20A | 50A | 100A | 200A | 300A |
| Dimensions | 152*65*94 | 180*172*77 | 229*138*208 | 326*171*215 | 522*240*218 | 520*240*218 |
| Weight | 1.1KG | 3KG | 7KG | 13.5KG | 25KG |
30.5KG
|
| DC Resistance | ≤10mΩ | ≤10mΩ | ≤10mΩ | ≤10mΩ | ≤10mΩ | ≤10mΩ |
| Full Charged Voltage | 14.6V | 14.6V | 14.6V | 14.6V | 14.6V | 14.6V |
| Discharge Cut-off Voltage | 10V | 10V | 10V | 10V | 10V | 10V |
| Humidity (non-condensing) | Max. 95% | Max. 95% | Max. 95% | Max. 95% | Max. 95% | Max. 95% |
| Terminal Type | F1 terminal | F1 terminal | Screw terminal | Screw terminal | Screw terminal | Screw terminal |
| Waterproof | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
|
Cycle life 25°C, 1C/1C |
>5000 times | >5000 times | >5000 times | >5000 times | >5000 times | >5000 times |
| Service Life | 5-10 years | 5-10 years | 5-10 years | 5-10 years | 5-10 years | 5-10 years |
| Warranty | 3 years | 3 years | 3 years | 3 years | 3 years |
3 years |
video
video
video
video
|
|
Lead Acid Replacement Batteries have several key features, including:
Lightweight: Lead Acid Replacement Batteries are typically much lighter than traditional lead-acid batteries, making them easier to handle and transport.
Maintenance-free: Unlike traditional lead-acid batteries, lead acid replacement batteries are maintenance-free and do not require regular watering or maintenance.
High energy density: Lead Acid Replacement Batteries have a high energy density, providing more power in a smaller package compared to traditional lead-acid batteries.
Fast charging: Lead Acid Replacement Batteries can be charged quickly, allowing for shorter charging times and increased productivity.
Environmentally friendly: Lead Acid Replacement Batteries are typically more environmentally friendly than traditional lead-acid batteries, as they are often made from recyclable materials and do not contain harmful chemicals like lead.
Long lifespan: Lead Acid Replacement Batteries have a longer lifespan than traditional lead-acid batteries, reducing the need for frequent replacements and saving money in the long run.
| Model | YM-1207LFP | YM-1220LFP | YM-1250LFP | YM-12100LFP | YM-12100LFP | YM-12300LFP |
| Nominal Voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V |
| Nominal Capacity @25℃ | 7AH | 20AH | 50AH | 100AH | 200AH | 300AH |
| Battery Type | 32700/26650 | 32700/26650 | LFP 50AH | LFP 100AH | LFP 200AH | LFP 300AH |
| Nominal Energy | 89.6WH | 256WH | 640WH | 1280WH | 2560WH | 3840WH |
| Max. Continous Charge Current | 7A | 20A | 50A | 100A | 200A | 300A |
| Dimensions | 152*65*94 | 180*172*77 | 229*138*208 | 326*171*215 | 522*240*218 | 520*240*218 |
| Weight | 1.1KG | 3KG | 7KG | 13.5KG | 25KG |
30.5KG
|
| DC Resistance | ≤10mΩ | ≤10mΩ | ≤10mΩ | ≤10mΩ | ≤10mΩ | ≤10mΩ |
| Full Charged Voltage | 14.6V | 14.6V | 14.6V | 14.6V | 14.6V | 14.6V |
| Discharge Cut-off Voltage | 10V | 10V | 10V | 10V | 10V | 10V |
| Humidity (non-condensing) | Max. 95% | Max. 95% | Max. 95% | Max. 95% | Max. 95% | Max. 95% |
| Terminal Type | F1 terminal | F1 terminal | Screw terminal | Screw terminal | Screw terminal | Screw terminal |
| Waterproof | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
|
Cycle life 25°C, 1C/1C |
>5000 times | >5000 times | >5000 times | >5000 times | >5000 times | >5000 times |
| Service Life | 5-10 years | 5-10 years | 5-10 years | 5-10 years | 5-10 years | 5-10 years |
| Warranty | 3 years | 3 years | 3 years | 3 years | 3 years |
3 years |
